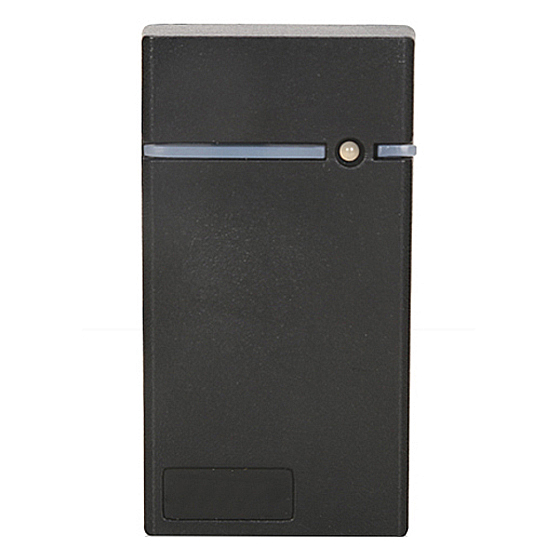

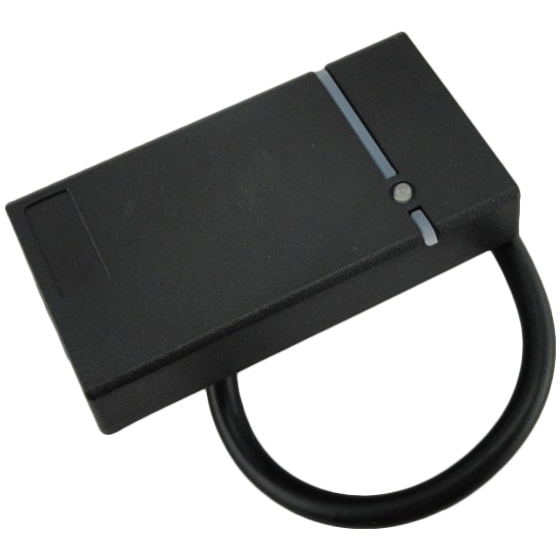

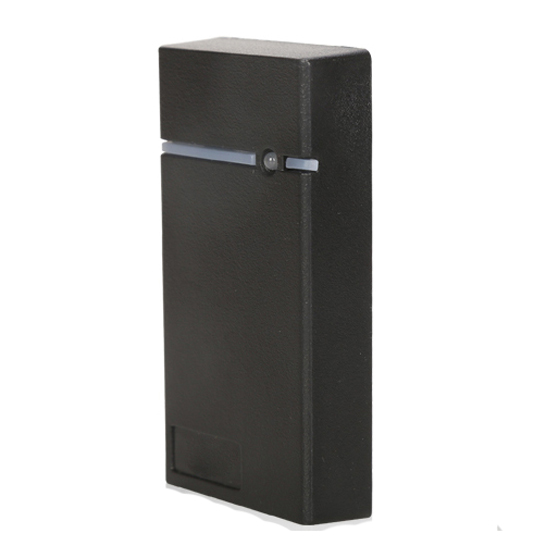

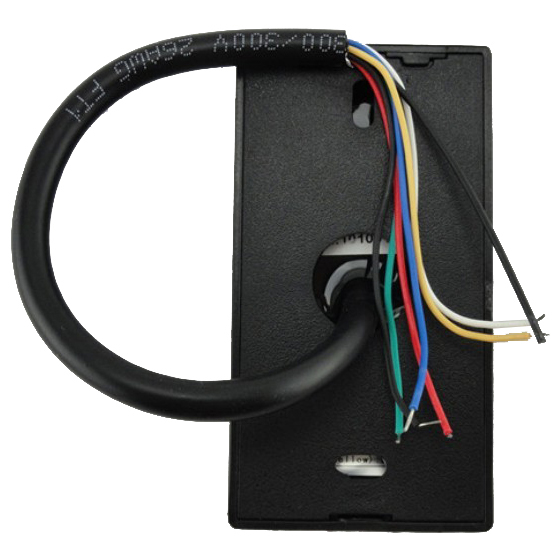

S4A Waterproof RFID Access Magnetic Card Reader
> Card type: 125KHz or 13.56MHz Card
> PCD-96EM: 125KHz (WG26 output)
> PCD-96Mifare: 13.56MHz (WG34 output)
Description
S4A Waterproof RFID Access Magnetic Card Reader
Model No.: PCD-96 EM, MF
Introduction:
PCD-96E: 125KHz Proximity card reader
PCD-96M: 13.56MHz Mifare card reader
Features:
> 125KHz Proximity /13.56MHz Mifare Card Reader
> Read Range: Up to 10CM(125KHz)/5CM(13.56MHz)
> 26/34bit Wiegand (default)
> Easy to install on Metal Door Frame or Mullion
> External LED Control
> External Buzzer Control
> Indoor / Outdoor Operation
> Solid Epoxy Potted
> Waterproof IP65
> Reverse Polarity Protection
| Model | PCD-96EM and PCD-96MF |
| Read Range | PCD-96EM: Up to 10CM, PCD-96MF:Up to 5CM |
| Reading Time (Card) | ≤300ms |
| Power / Current | DC 6-14V / Max.70mA |
| Input Port | 2ea (External LED Control, External Buzzer Control) |
| Output Format | 26bit/34bit Wiegand (default) |
| LED Indicator | 2 Colour LED Indicators(Red and Green) |
| Beeper | Yes |
| Operating Temperature | -20° to +65°C |
| Operating Humidity | 10% to 90% relative humidity non-condensing |
| Colour | Black |
| Material | ABS+PC with texture |
| Dimension(W x H x T)mm | 80X43X16mm |
| Weight | 50g |
| Index of Protection | IP65 |
