433MHz Wireless RFID Access Control Reader
> 433MHz Rolling Code technology
> Card type: 13.56MHz Mifare card
> Programmable Wiegand output of the
> Receiver: 26 bits or 34 bits
> Communication distance: 30m maximum
> Ultra-low power consumption
> Waterproof, conforms to IP65
Description
433MHz Wireless RFID Access Control Reader
Model No.: WR1-B
Features:
> 433MHz Rolling Code technology
> Card type: 13.56MHz Mifare card
> Programmable Wiegand output of the
> Receiver: 26 bits or 34 bits
> Communication distance: 30m maximum
> Ultra-low power consumption
> Waterproof conforms to IP65
| Wireless Reader | Card Type | 13.56MHz Mifare card |
| Operating Voltage | 3 units of AAA batteries | |
| Idle Current | ≤5uA | |
| Working Current | ≤35mA | |
| Reading Distance | ≤3cm | |
| Communication Frequency | 433MHz | |
| Communication Distance | 30m Maximum | |
| Operating Temperature | -20’C ~ +60’C (-4’F ~ +140’F) | |
| Operating Humidity | 0% ~ 86% | |
| Index of Protection | IP65 | |
| Colour | Black, White optional | |
| Dimensions | L120 * W50 * H20(mm) | |
| Net Weight | 88g | |
| Receiver | Operating Voltage | 12V DC |
| Working Current | ≤15mA | |
| Communication Frequency | 433MHz | |
| Wiegand Output Format | 26 bits Or 34 bits (Default is 26 bits) | |
| Operating Temperature | -20’C ~ +60’C (-4’F ~ +140’F) | |
| Operating Humidity | 0% ~ 86% | |
| Dimensions | L25 * W50(mm) | |
| Net Weight | 10g |

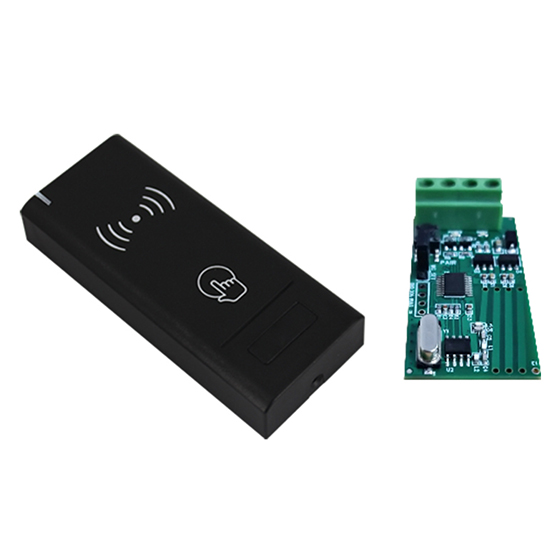

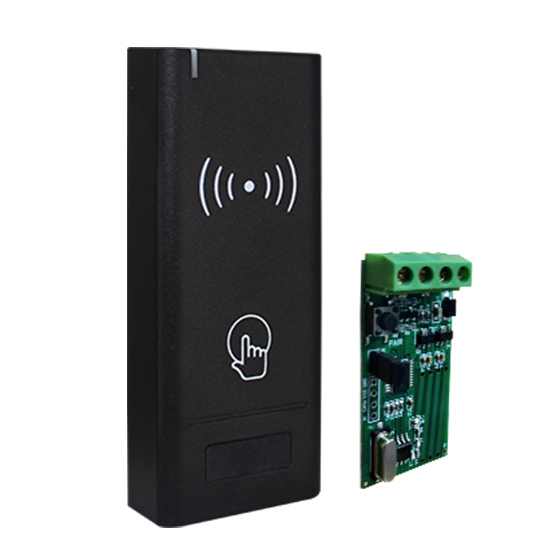

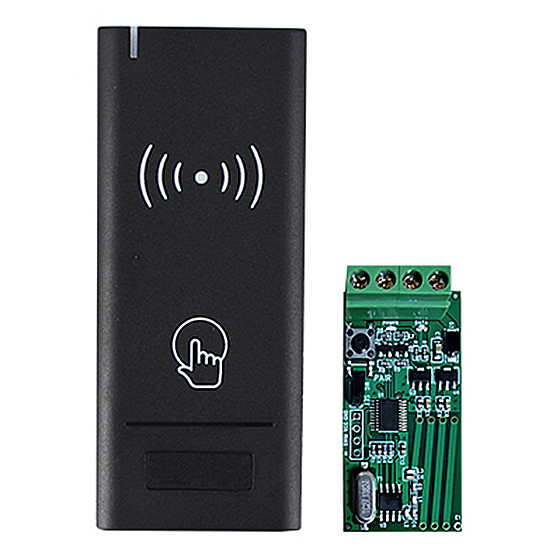

The wireless Reader Kit includes a Wireless Reader and a Receiver. 433MHz Rolling Code of encryption algorithm guarantees higher-secure, programmable Wiegand output of the Receiver makes it can work with most Wiegand controller in the world. Super-strong 3M stickers provide a simple way of installing the Wireless Reader.
Because of ultra-low power consumption, the battery of Wireless Reader can work as long as 6 months.
(bases on 30 times/day)
