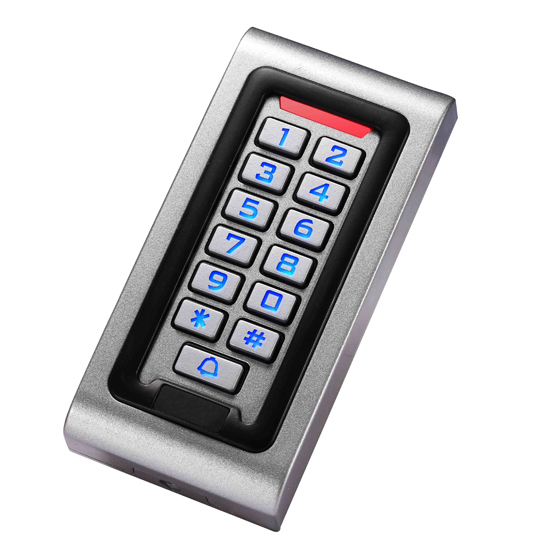

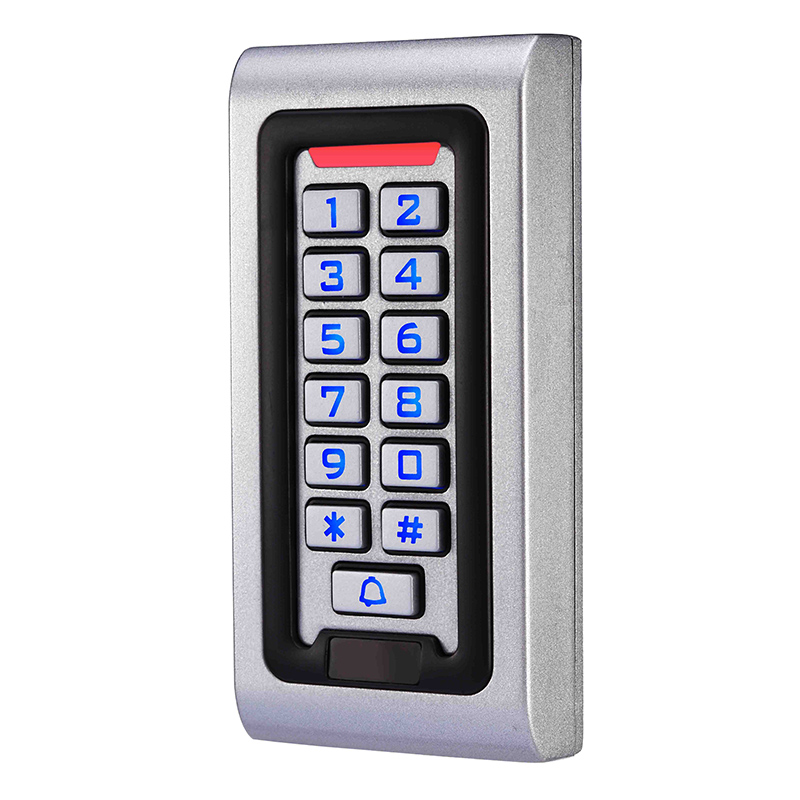

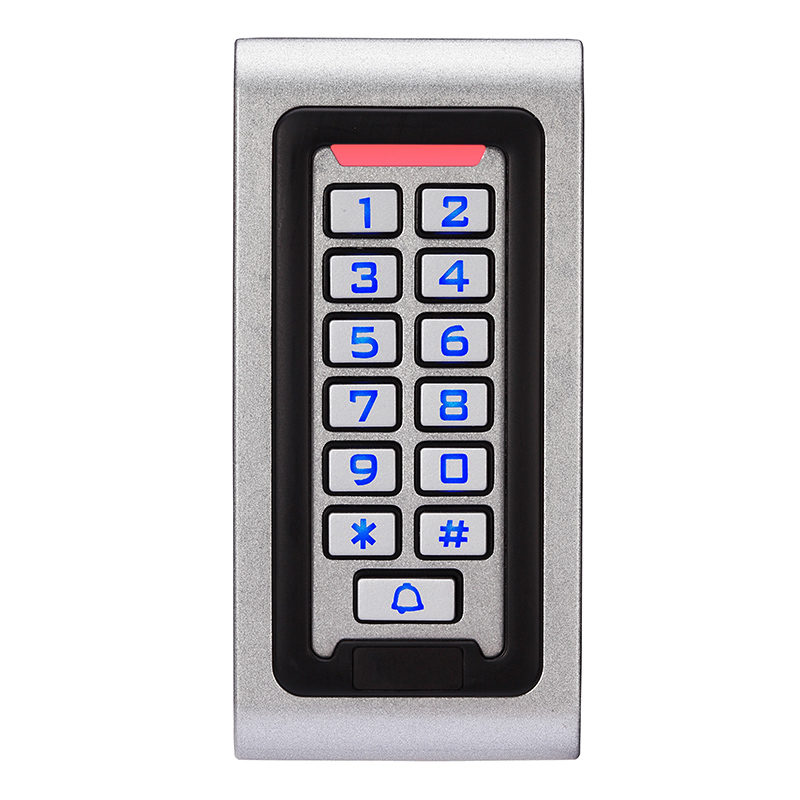

Metal Outdoor Waterproof Keypad RFID Touch Access Control Reader
> Card type: EM or MF Card
> Metal structure design, anti-vandal
> Digital backlit keyboard
> All-in-one, WG26 output/input
> Three-way to open the door, card, password, card + password
> The doorbell button and interface: buttons and isolation circuit, connect to any external bell
Description
Waterproof Metal Access Control
Model No.: S601-W EM, MF
The product is a Contactless inductive card Metal Password Access Controller，According to the model, respectively support EM, HID, MIFARE three cards， It is one of the most advanced stands alone access controller.
It uses a unique metal exterior design, Dexterity keyboard panel operation, Built-in high-grade microprocessors, Strong anti-interference ability, Safety, and reliability are extremely high, can provide powerful security for 2,000 users.
It has strong functions, such as low power consumption, Luminous keyboard, independent passwords, Wiegand output, the output short circuit protection, door magnetic alarm, prevent demolition alarm, exit button, the doorbell interface, level of security Settings, etc. widely used in home, office, residential area, and other public places.
| Card type | EM or MF |

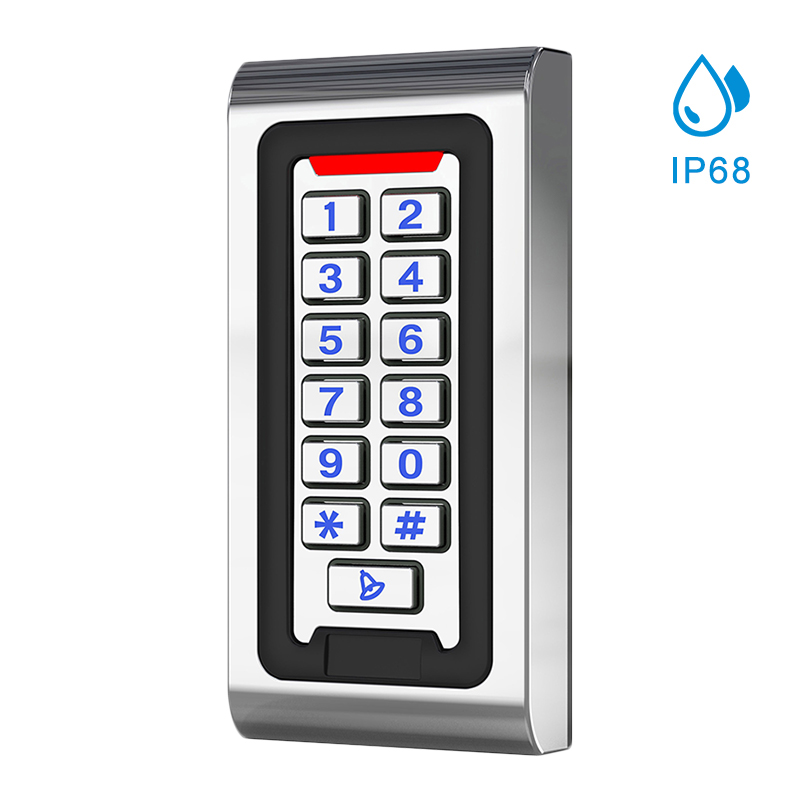

| Waterproof degree | Non-Waterproof(S601) / IP68(S601-W) |
| User capacity | 2000 card user card, 2000 user password |
| Environment Humidity | 10%～90% |
| Lock output | ≤3A |
| Working voltage | DC12V±10％ |
| Static electricity | ≤30mA |
| Alarm output | ≤20A |
| Output short circuit protection time | ≤100μS |
| Card read distance | 5～8cm |
| Ambient temperature | -45℃～60℃ |
| Door Opening Time | 0～99s(Adjustable) |
| Dimension | 120*56*18mm |
Perfect design, with backlight and fashion silver finish.
Waterproof design for outdoor use.
A strong standalone function device can be used as a WG26 reader alone.
Capacity: 2000 user’s cards, 2000 codes.
Access ways: cards, code, card+code.
Low power: static current less than 30mA
Support the only keypad.
Users can reset private passwords.
Search fast less than 0.1S.
Wiegand output W26 for card and w4 for codes.
Use the keypad to delete lost cards for safety.
Short-circuit protect: when relay or alarm output short circuit, it will shut up output in 100μS.
