EM 125KHz Wireless Access Control Reader
> 433MHz Rolling Code technology
> PIN Length: 1-6 digits
> Card Type: 125KHz EM card
> Wiegand output: 26 bits or 34 bits
> Communication distance: 30m maximum
> Ultra low power consumption
Description

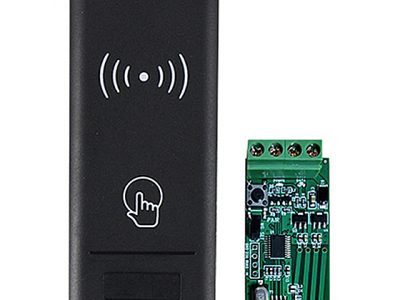

EM 125KHz Wireless Access Control Reader
Model No.: WK1-EM
WK1-EM is a Wireless Keypad & EM Card Reader, including the Wireless Keypad and Receiver, it’s 433MHz Rolling code communication between the keypad and receiver, and the receiver can be connected to any 3rd party Wiegand controller.
> 433MHz Rolling Code technology
> PIN Length: 1-6 digits
> Card Type: 125KHz EM card
> Programmable Wiegand output of the Receiver: 26 bits or 34 bits
> Communication distance: 30m maximum
> Ultra-low power consumption
| Wireless Keypad Reader | PIN Length | 1-6 digits |
| Card Type | 125KHz EM card | |
| Operating Voltage | 3 units of AAA batteries | |
| Idle Current | ≤5uA | |
| Working Current | ≤45mA | |
| Reading Distance | ≤3cm | |
| Communication Frequency | 433MHz | |
| Communication Distance | 30m Maximum | |
| Operating Temperature | -20°C～60°C (-4°F～+140°F) | |
| Operating Humidity | 0%～86% | |
| Physical | ABS | |
| Dimensions | L134 x W55 x H20 (mm) | |
| Net Weight | 100g | |
| Receiver | Operating Voltage | 12V DC |
| Working Current | ≤15mA | |
| Communication Frequency | 433MHz | |
| Wiegand Output Format | 26 bits Or 34 bits (Default is 26 bits) | |
| Operating Temperature | -20°C～60°C (-4°F～140°F) | |
| Operating Humidity | 0%～86% | |
| Dimensions | L25 x W50 (mm) | |
| Net Weight | 10g | |
| Wireless Button (Optional Accessory) |
Operating Voltage | 1unit of 2023 Lithium battery |
| Idle Current | ≤2uA | |
| Working Current | ≤20mA | |
| Communication Frequency | 433MHz | |
| Communication Distance | 20m Maximum |
