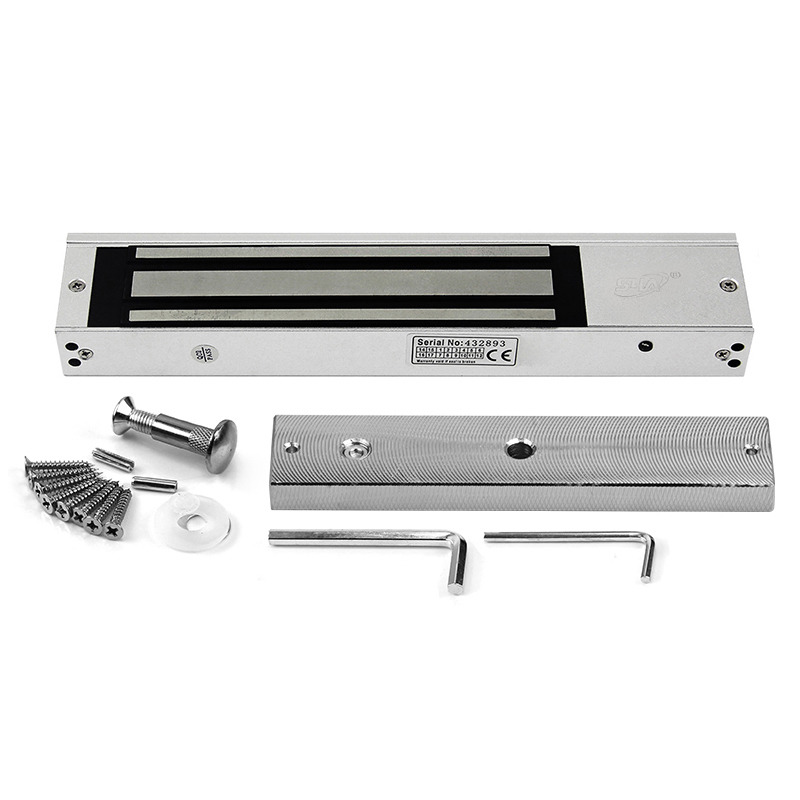

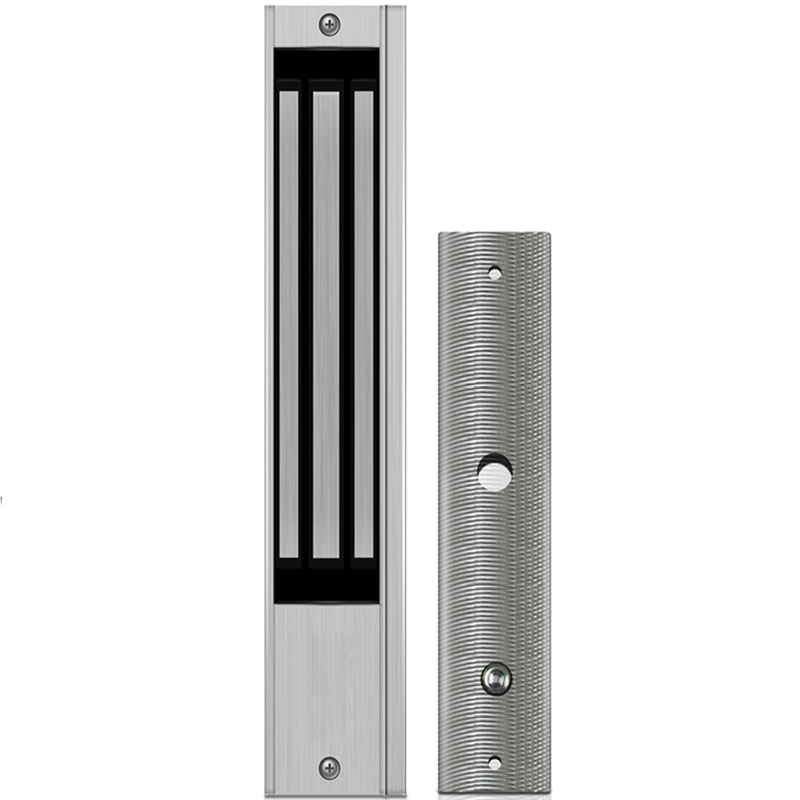

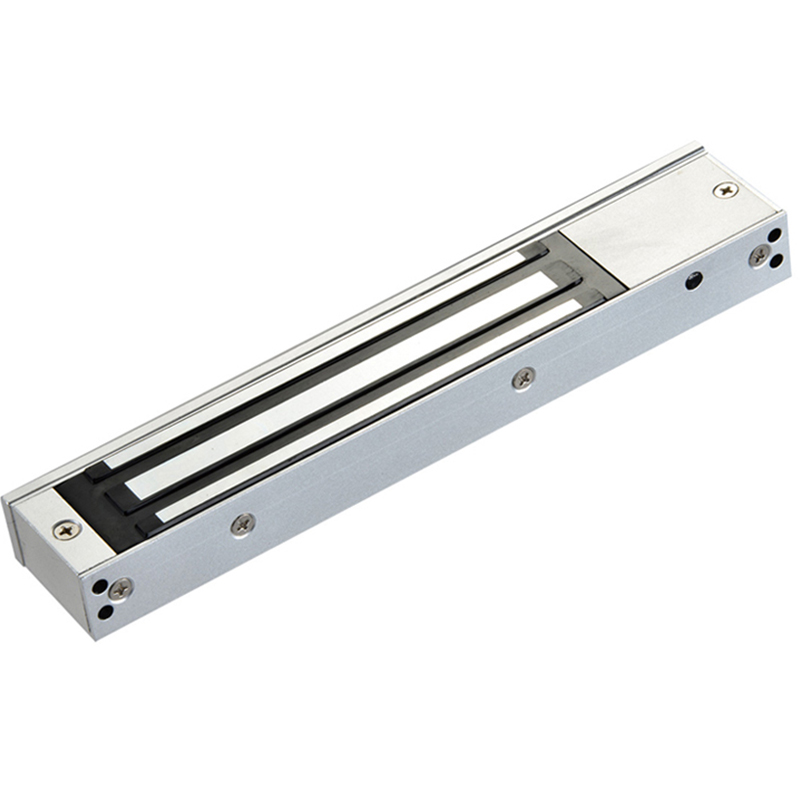

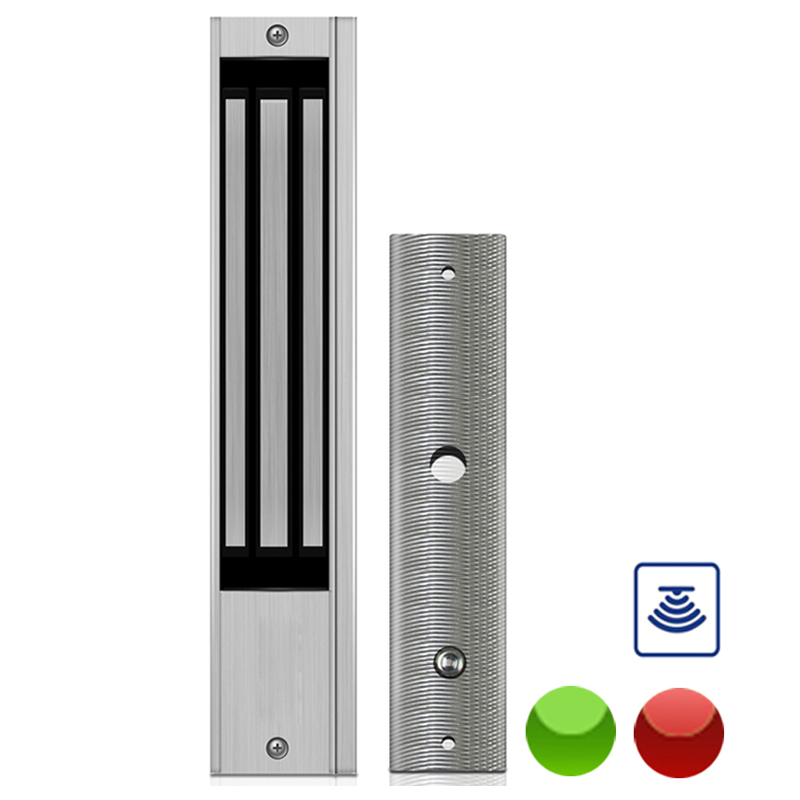

Electromagnetic Lock 600lb Holding Force Fail Safe with LED Sensor for Out-Swing Door
> LED, Lock sensor
> Voltage: DC12V and DC24V
> Holding Force: 280KG
> Built in LED and door sensor
Description
Electromagnetic Lock 600lb Holding Force Fail Safe with LED Sensor for Out-Swing Door
Model No.: EL-600SD

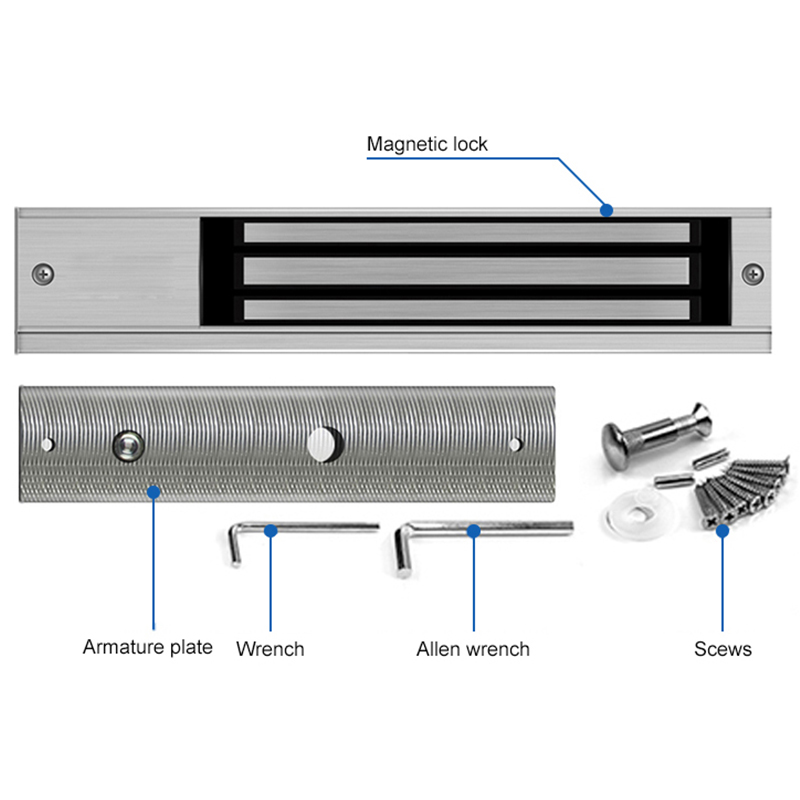

What is an Electromagnetic Lock?
Electromagnetic locks consist of an armature and a coil assembly, which become magnetized when an electric current passes through them. This magnetic field secures the door and electronically controls when doors are locked and unlocked.
Electromagnetic locks are fail-safe by design.
| Model No. | LED | Lock Sensor | Door Sensor | Time Delay | Buzzer | Voltage |
| EL-600S | √ | x | x | x | x | 12V |
| EL-600SD | √ | √ | x | x | x | 12V |
| EL-600ST | √ | √ | x | √ | x | 12V & 24V |
| EL-600SZ | √ | √ | x | x | √ | 12V & 24V |
| EL-600LSD | √ | √ | √ | x | x | 12V & 24V |
| Lock size | 250Lx48.5Wx25H(mm) |
| Plate | 180Lx38Wx11H(mm) |
| Holding Force | 280kg (600Lbs) |
| Voltage | DC12V or DC24V (adjustable) |
| Current Draw | 12V/500mA 24V/250mA |
| Signal Output | Dry Contact, Max Rating of Contact Current 3A |
| Surface Temp | ≤20°C |
| Operating Temp | -10°C ~ 55°C (14°F~131°F) |
| Suitable Humidity | 0~90%(non-condensing) |
| Finishes for Shell | Anodized aluminum surface texture processing |
| Finishes for Magnetic | Zinc |
| Finishes for Armature | Zinc |
| Weight | 2kg |
| Standard Packing | 10pcs |
