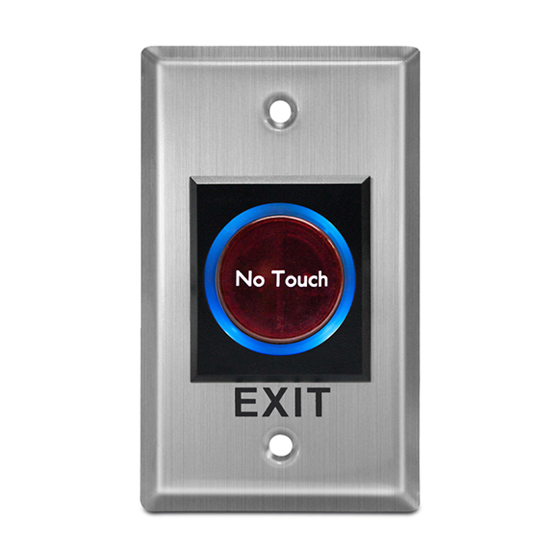

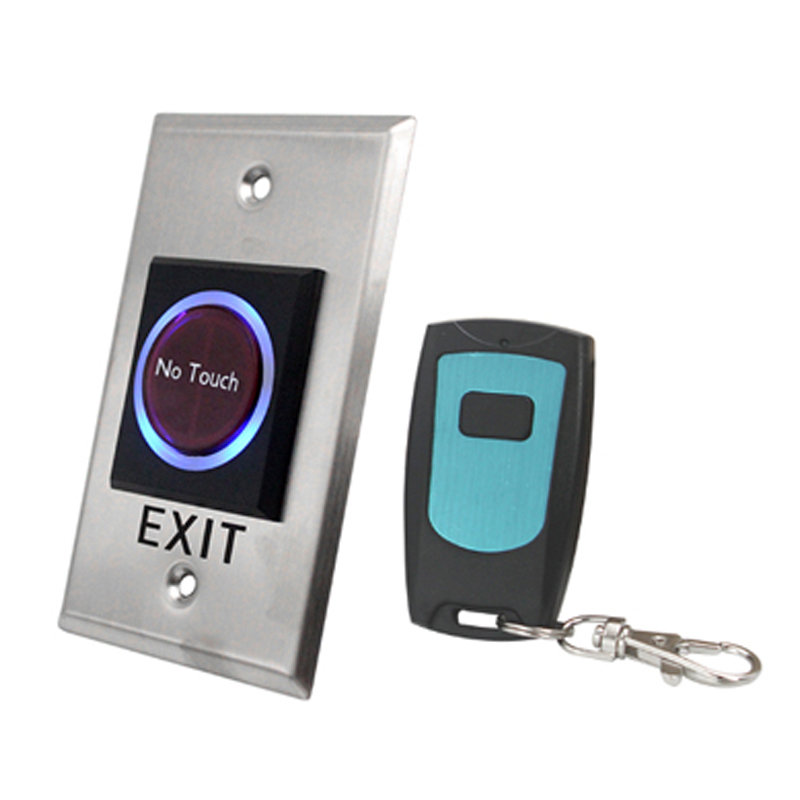

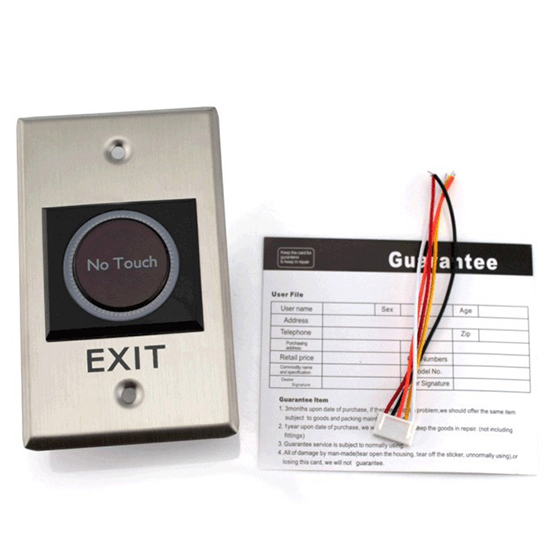

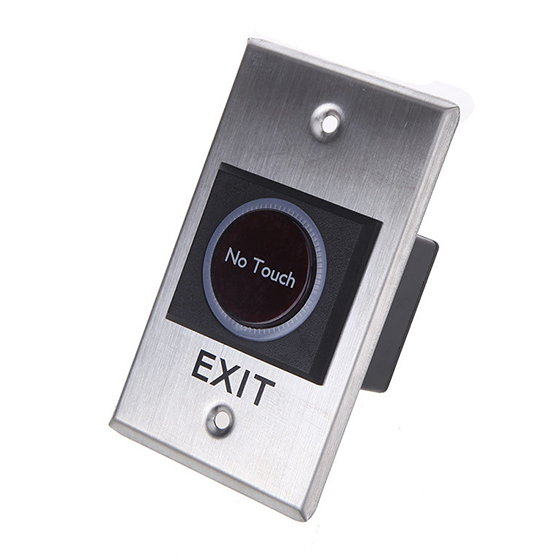

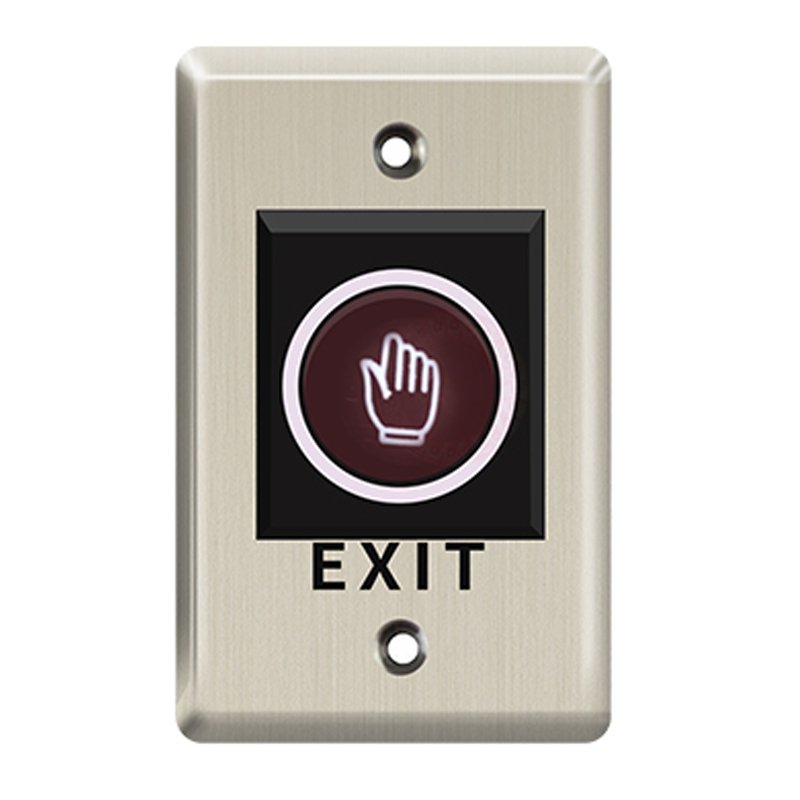

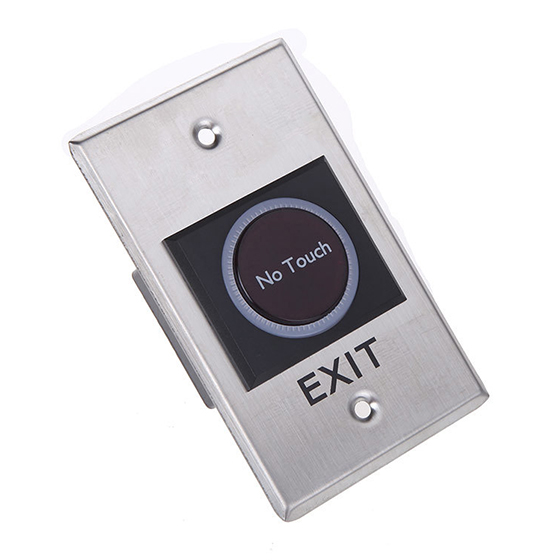

IR Sensor Button with Remote Control
Dimension: 115x70x26mm
Description
IR Sensor button with Remote Control
Model No: EB-16R1
| Product Parameter | Parameter Description |
| S4A Model | EB-16R1 |
| Product Name | Infrared Sensor Exit Button with Remote Control |
| Dimensions | 115Lx70Wx26H(mm) |
| Input | DC12V-24V |
| Contact Rating | 1A@36VDC |
| Output Contact | NO/NC/COM |
| Mechanical Life | 500000 tests |
| Suitable for Door | Hollow Door |
| Operating temp | -20℃～+55℃(14-131F) |
| Suitable Humidity | 0-95% (relative humidity) |
| Detection range | Max 20cm |
| Delay | 0 ~ 30s ( Option) |
| Remote Control | Support |
| Buzzer | Support |
| Unit Weight | 0.11KG |
| Standard Package | 100PCS/carton |
| Carton Weight | 11KG |
| Carton Size | 51*43*33(cm) |
