Description

The TRILINK TL-WB23500 Wireless Bridge is a high-performance 2.4 GHz point-to-point (PtP) and point-to-multipoint (PtMP) wireless bridge designed for stable and reliable long-distance data transmission in both indoor and outdoor environments.

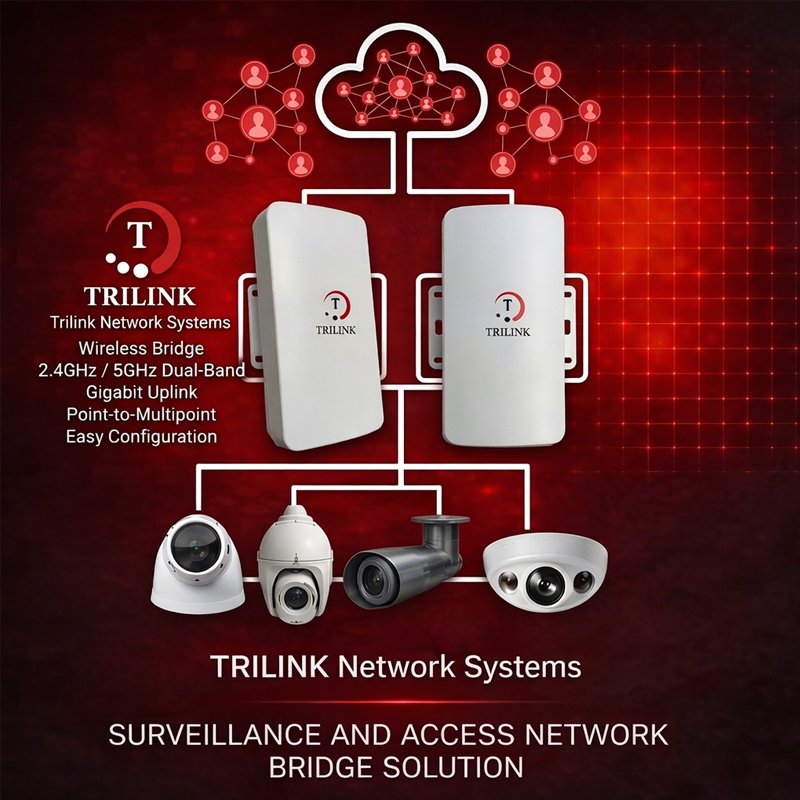

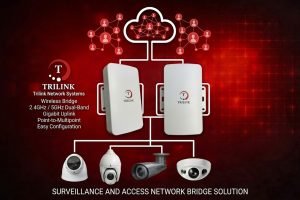

With smart plug-and-play pairing and industrial-grade wireless performance, it eliminates complex configuration and delivers secure, high-speed connectivity across buildings, campuses, warehouses, factories, CCTV installations, parking areas, and elevator monitoring systems.

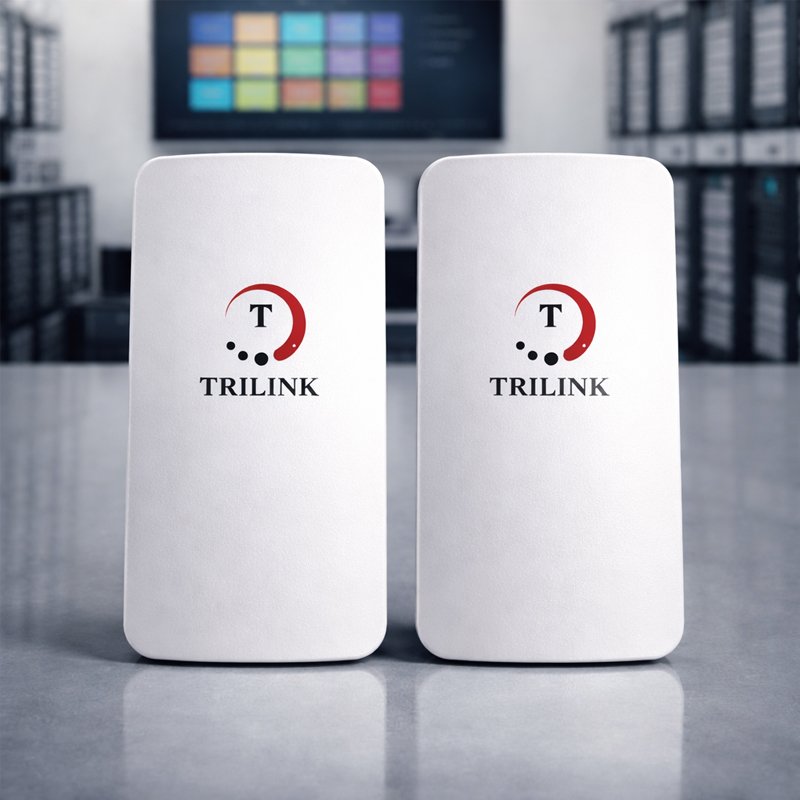

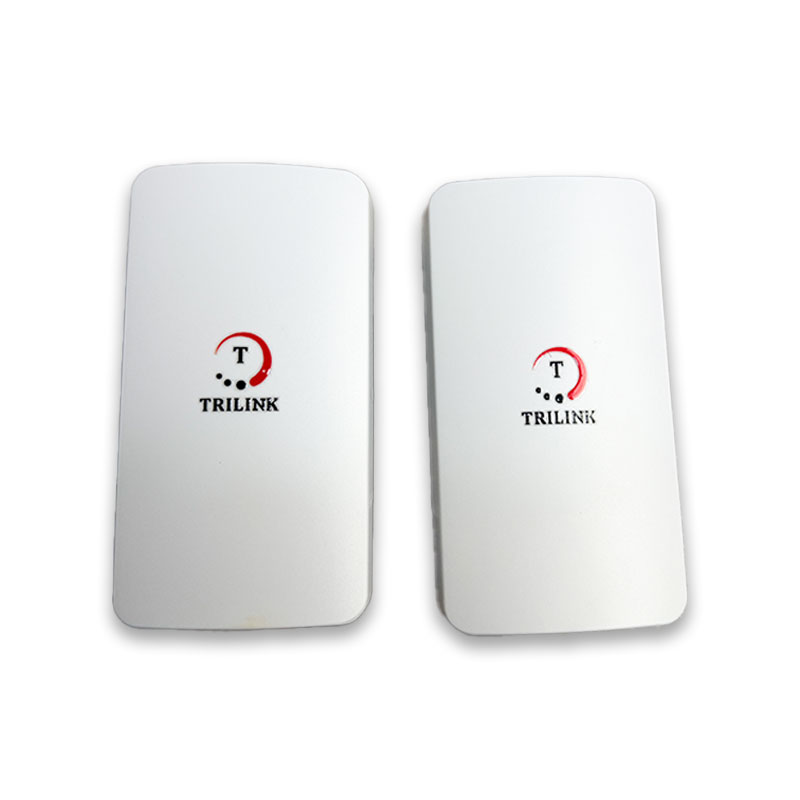

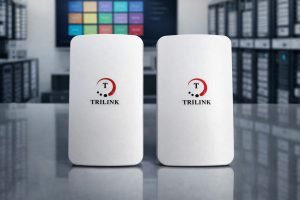

Product Appearance & Indicators

• Compact and lightweight design
• Integrated directional antenna
• Digital display for pairing code

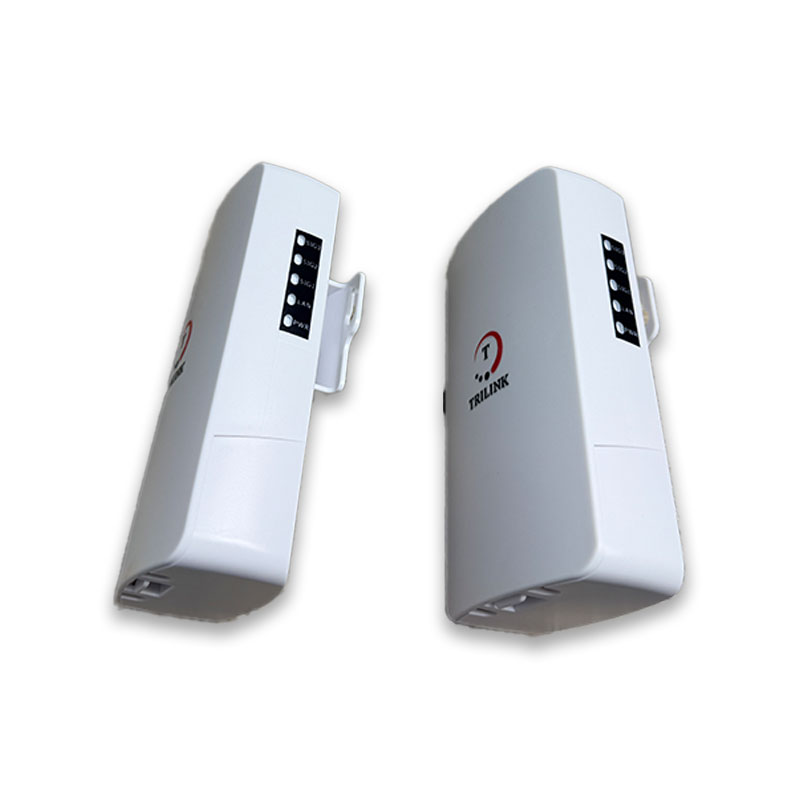

• LED indicators for Power, LAN, and Wireless Signal Strength

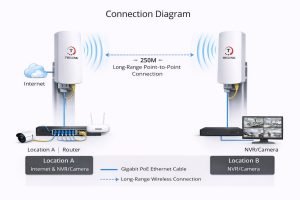

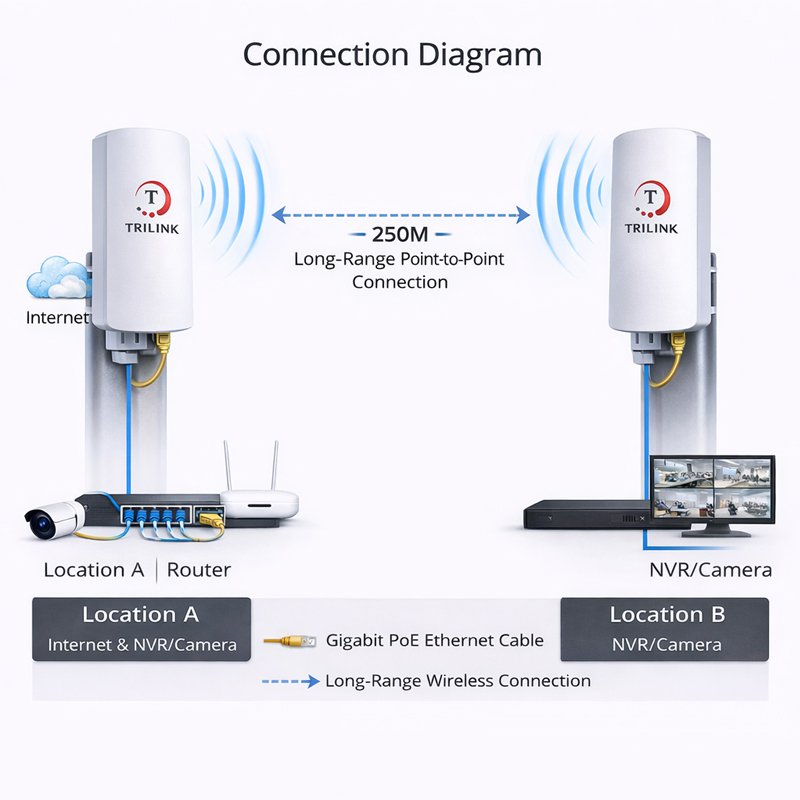

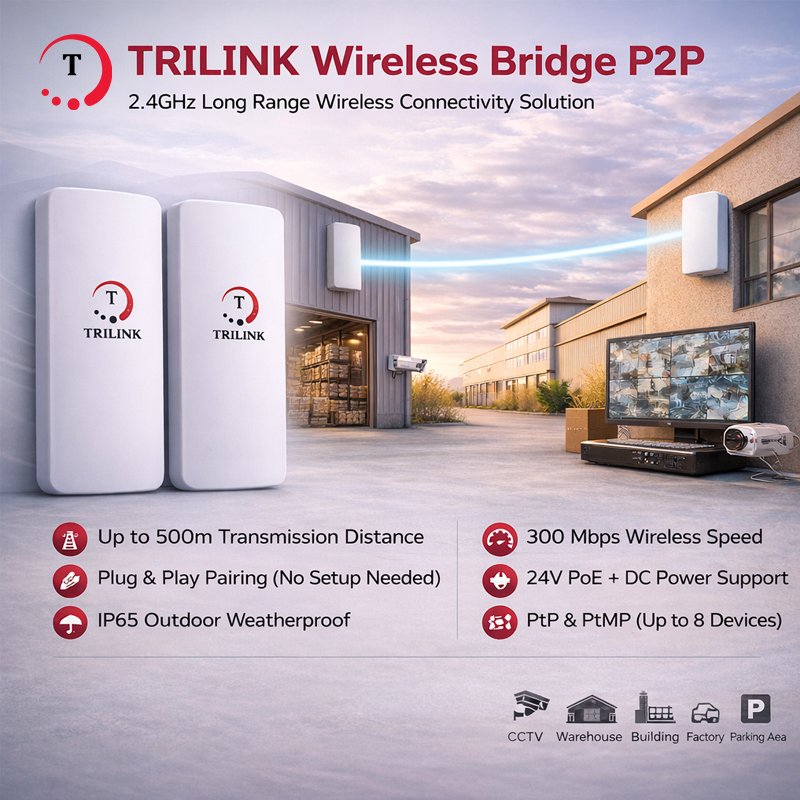

Long-Range Wireless Connectivity

Equipped with a built-in 5 dBi directional antenna, the TL-WB23500 delivers stable wireless transmission up to 500 meters, ideal for environments where cabling is difficult or costly.

Smart Digital Pairing

Pre-configured digital code pairing enables instant PtP or PtMP connection. Simply set the same code on both devices to complete pairing without logging into a web interface.

Flexible Power Supply

Supports 24 V Passive PoE for simplified cabling as well as DC 12 V / 1 A local power input for flexible deployment.

Outdoor-Ready Design

The IP65-rated enclosure provides protection against dust, rain, and sunlight, ensuring reliable operation in harsh outdoor environments.

Specifications

  Hardware Specifications

Item	Description
Wireless Standards	IEEE 802.11b/g/n
Frequency Band	2.4 GHz ISM Band (2.400 – 2.4835 GHz)
Wireless Speed	Up to 300 Mbps
Transmission Distance	Up to 500 m (Line-of-Sight)
Chipset	MT7628 Industrial-grade chipset
CPU Frequency	580 MHz
Memory	64 MB DDR2
Flash	8 MB
Antenna	Built-in 5 dBi dual-polarized directional antenna
Ethernet Interface	1 × 10/100 Mbps Adaptive Ethernet Port



 Radio Frequency Characteristics

Item	Description
Channels	1 – 13
Modulation	OFDM (BPSK, QPSK, 16-QAM, 64-QAM), DSSS
Output Power	Up to 19 dBm (varies by mode)
Receive Sensitivity	Up to -94 dBm



Power Specification

Item	Description
Power Supply	24 V Passive PoE / DC 12 V 1 A
Power Consumption	< 10 W
Adapter Input	AC 100–240 V, 50/60 Hz



Physical Specifications

Item	Description
Dimensions	140 × 78 × 50 mm
Weight	0.13 kg (Single Unit)

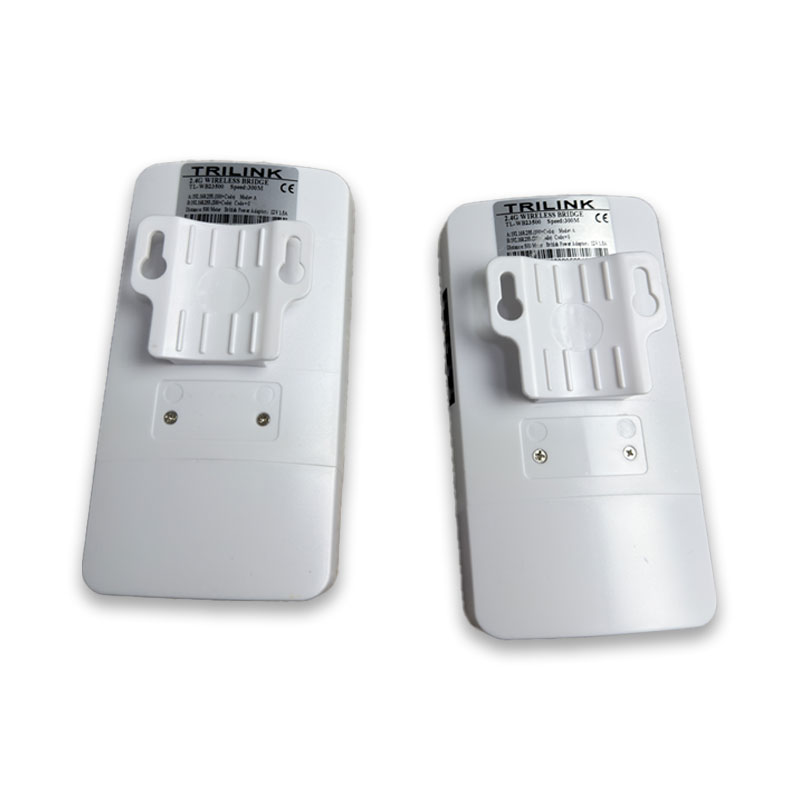

Installation	Wall Mount / Pole Mount
Protection Level	IP65 (Outdoor Rated)



Operating Environment

Item	Description
Operating Temperature	-30 °C to +55 °C
Storage Temperature	-40 °C to +70 °C
Operating Humidity	10% – 90% (Non-condensing)
Storage Humidity	5% – 95% (Non-condensing)

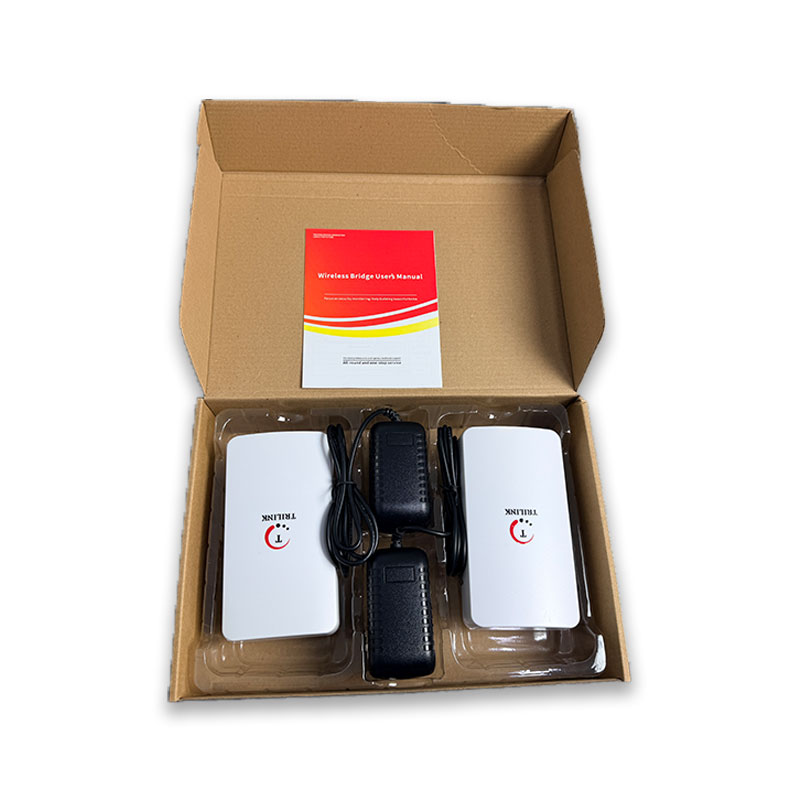

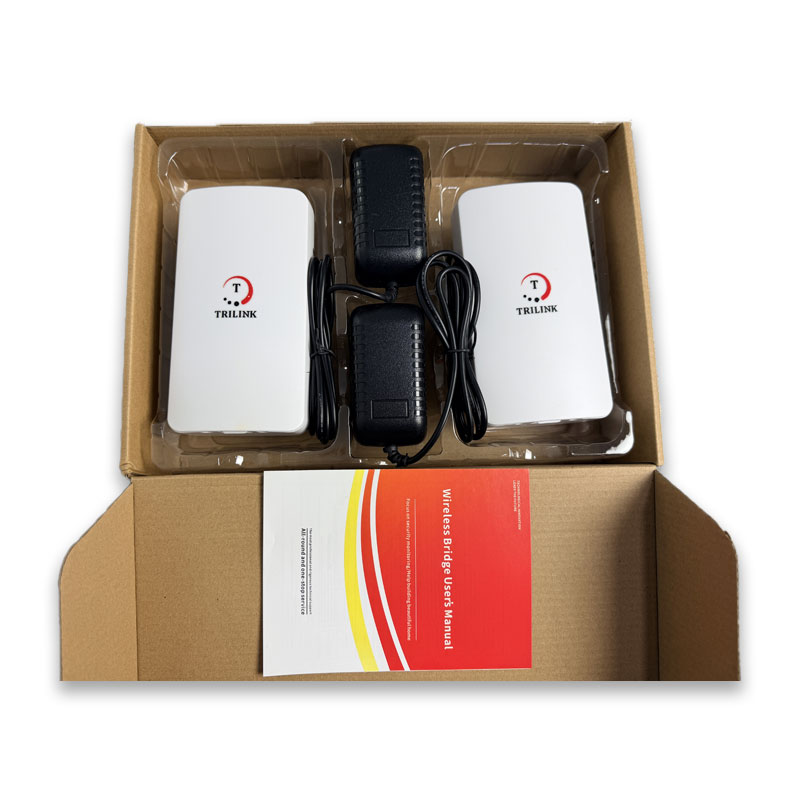

 Package Contents

Item	Description
Wireless Bridge Device	1
Power Adapter	1
Mounting Accessories	1 Set
User Manual	1



Important Notice

Maximum wireless signal rates are the physical rates derived from IEEE 802.11 standard. Actual performance may vary depending on environmental factors, interference, and installation conditions. Specifications are subject to change without prior notice
