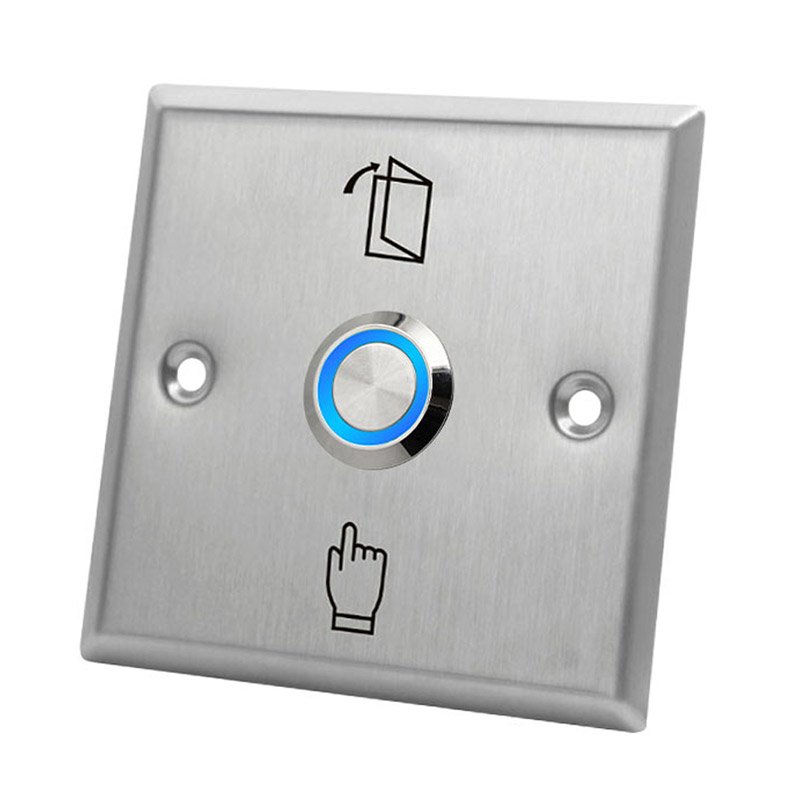

S86LS Access Control 0.9mm Thick Stainless Steel Exit Button Switches With LED
Dimension: 86x86mm
Description
Model No: S86LS
| Product Parameter | Parameter Description |
| S4A Model | S86LS |
| Product Name | Stainless Steel Exit Button with LED |
| Dimensions | 86Lx86W(mm) |
| Panel | 0.9mm Thick 304 Stainless steel (Wire Drawing） |
| Power | 12VDC or 24VDC |
| Contact Rating | 3A/125-250VAC |
| Output Contact | NO/COM/+12V/GND |
| Mechanical Life | 100,000 Tests |
| Suitalbe for Door | Hollow Door |
| Operating Temperature | -20℃～+55℃(14-131F) |
| Suitable Humidity | 0-95% (relative humidity) |
| Installation Diameter | 19mm |
| Led Colour | Default Blue,Optional Green/Red |
| Button Colour | Silvery |
| Logo | S4A Customizable |
| Unit Weight | 0.085KG |
| Packing Quantity | 100 PCS/CTN |
| Packing Size(L*W*H) | 50*45*24 (cm) |
| Gross Weight | 9.5KG |
