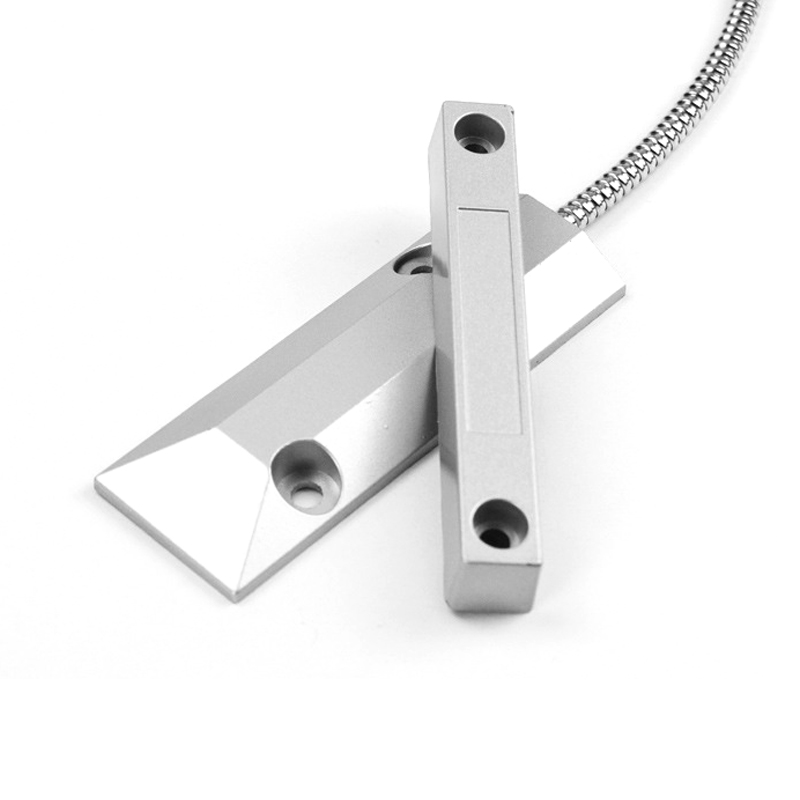

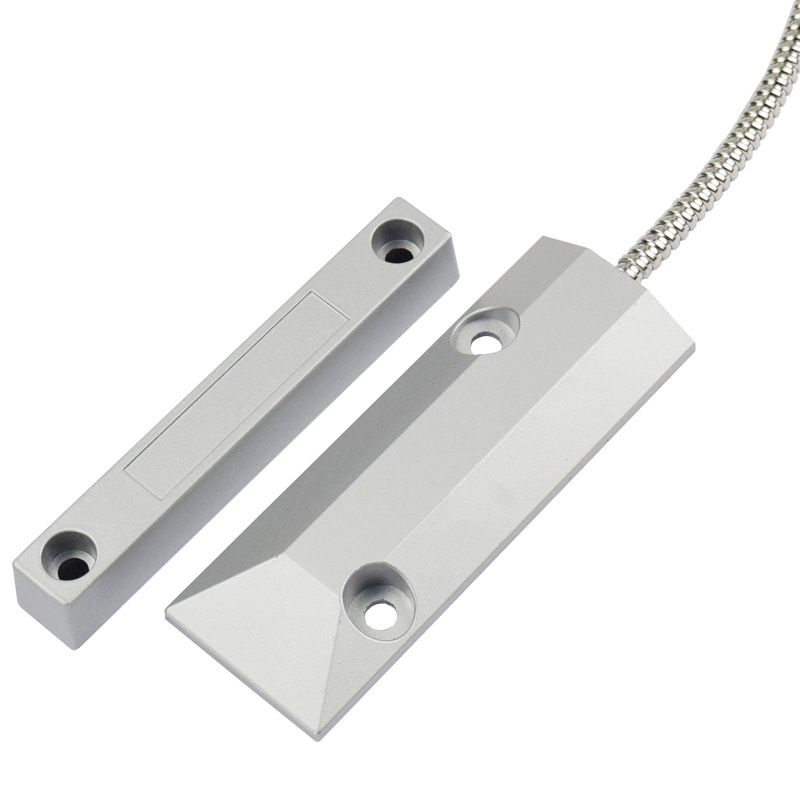

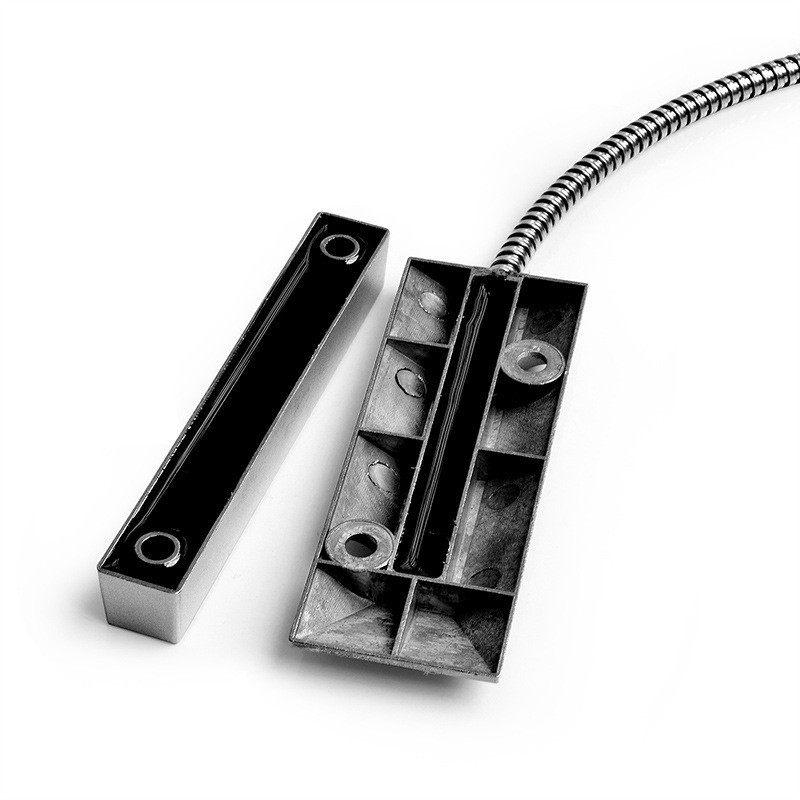

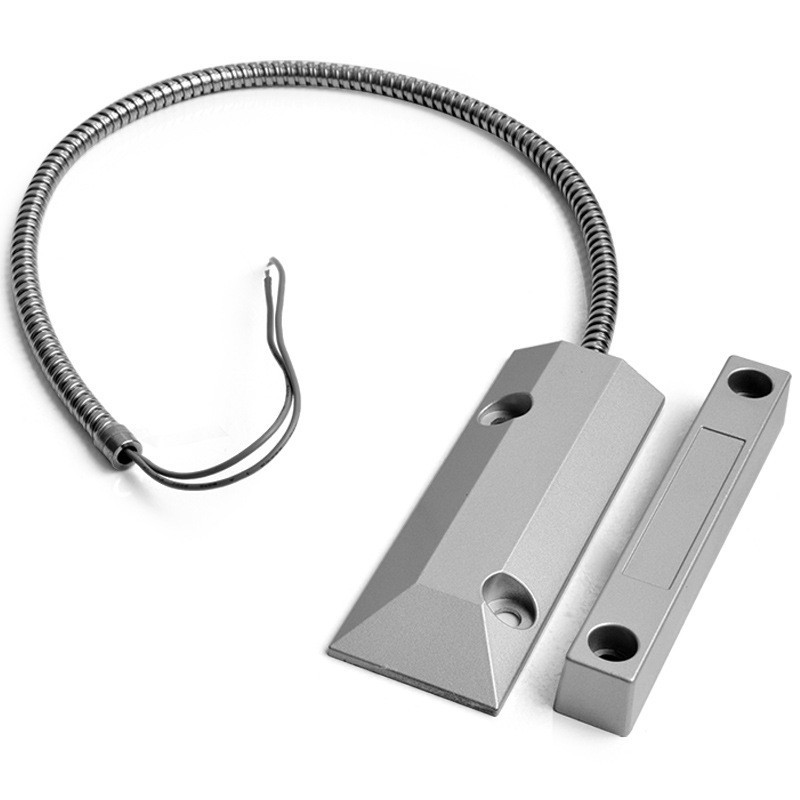

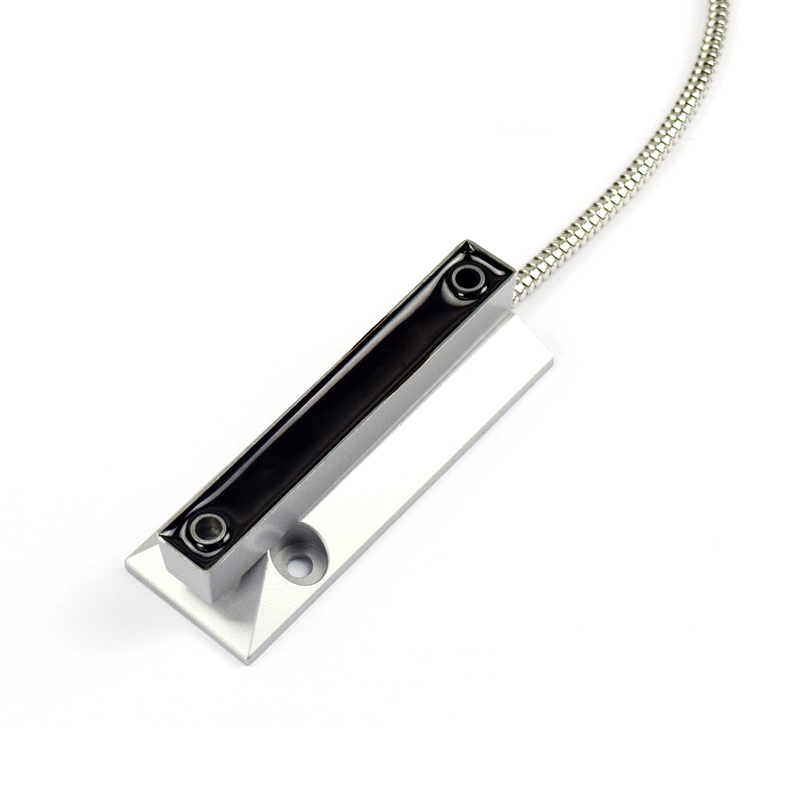

Magnetic Reed Switch normally open
>Sensing distance: 30mm
>Switch form: NO-Normally Open/NC-Normally Close/NO+NC
>Electrical parameters: maximum power 10W, working voltage 100VDC, working current 500A
Description
Magnetic Reed Switch normally open

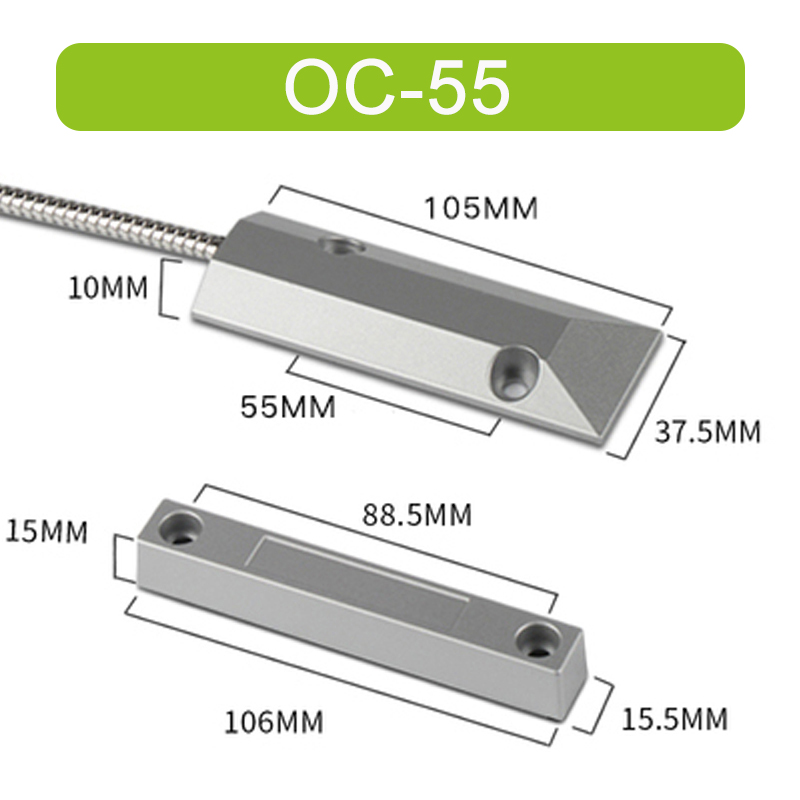

Model No.: OC-55
what is Magnetic Reed Switch？
The reed switch is an electrical switch operated by an applied magnetic field. … The switch may be actuated by an electromagnetic coil, making a reed relay, or by bringing a permanent magnet near it. When the magnetic field is removed, the contacts in the reed switch return to their original position.
What are magnetic reed switches used for?
A reed switch is an electromagnetic switch used to control the flow of electricity in a circuit. They are made from two or more ferrous reeds encased within a small glass tube-like envelope, which become magnetised and move together or separate when a magnetic field is moved towards the switch.
| S4A Model | OC-55 |
| Sensing distance | 30mm |
| Switch form | NO-Normally Open/NC-Normally Close/NO+NC |
| Electrical parameters | maximum power 10W, working voltage 100VDC, working current 500A |
| Power cord length | 45cm |
| Hose length | 30cm |
| Working environment | -40°C~80℃ |
| Relative humidity | ≤95% (40℃ ) |
