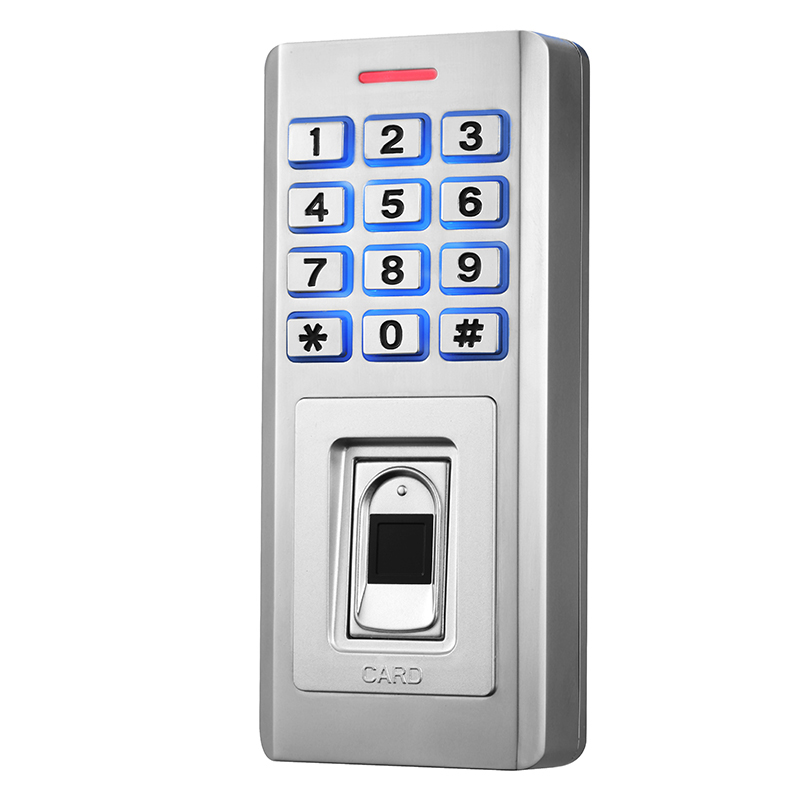

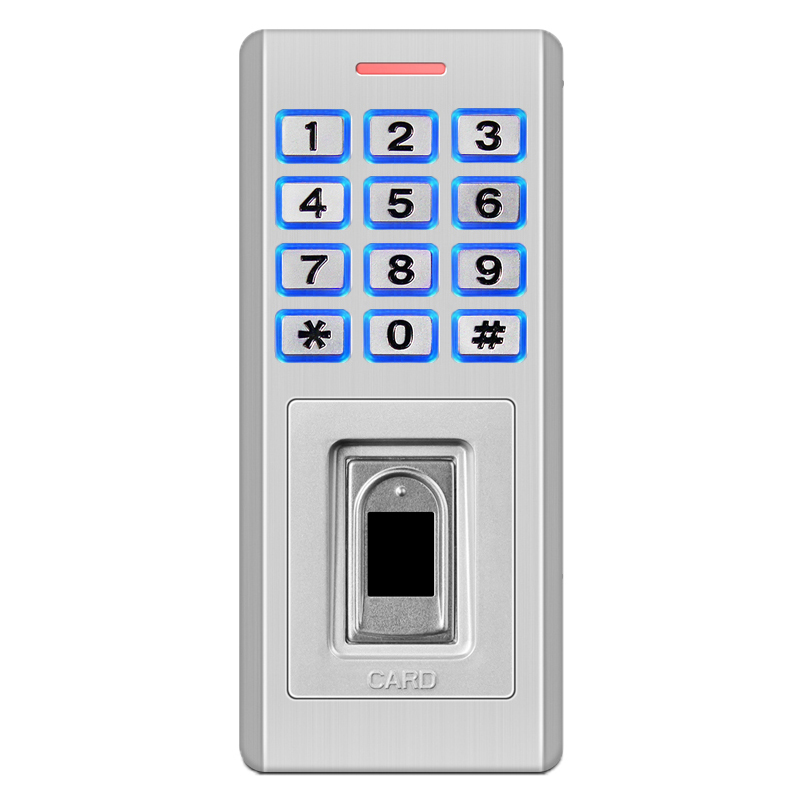

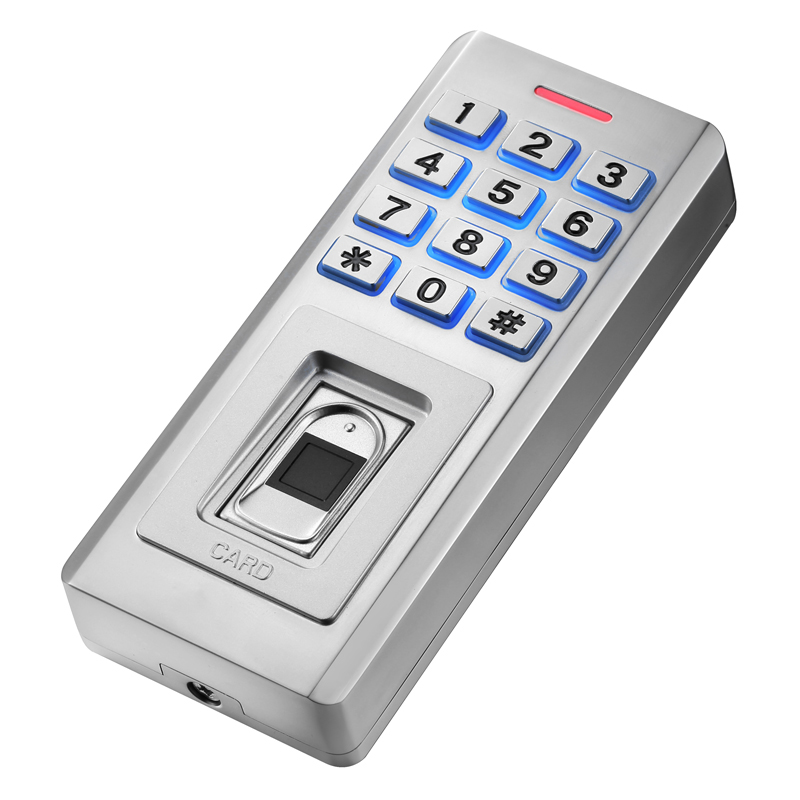

Indoor and Outdoor Rated IP68 Access Control Standalone Biometric Fingerprint Reader with Wiegand 600 Fingerprints and Capacitive Semiconductor Sensor
> Card type: EM, HID, MF, CPU Card
(Factory default: EM 125KHz)
> Metal backlight keypad
> User capacity: 10,000 users
> Dimensions: 152x60x24mm
> Waterproof IP68
Description
Indoor and Outdoor Rated IP68 Access Control Standalone Biometric Fingerprint Reader with Wiegand 600 Fingerprints and Capacitive Semiconductor Sensor
Model No.: KF5 EM, HID, MF, CPU
This series of products is a new generation of multi-function standalone access control. It adopts a new ARM core 32-bit microprocessor design, which is powerful, stable, and reliable.
It includes card reader mode and standalone access control mode etc.. Its widely applied to different occasions, such as offices, residential communities, villa, bank, and prison, etc..
Features:
> Read 125KHz EM / HID Card / 13.56MHz Mifare / CPU Card (Factory default: EM 125KHz)
> Metal backlight keypad
> Contains card reader mode. The transmission format could be adjusted by user.
> Supports different access ways: Entry by Card + Code or Entry by multi cards
> Support master added a card and deleted the card
> User capacity: 10,000 users
| Card type | EM / HID / MF / CPU |
| User Capacity | 10,000 users |
| Fingerprint Capacity | 600 |
| Operating Voltage | DC 12-24V |
| Standby Current | ≤35mA |
| Operation Current | ≤100mA |
| Operating Temperature | -40℃～60℃ |
| Operating Humidity | 0%～95% |
| Waterproof | IP68 |
| Dimensions | 129x56x22mm |
| Access ways | Fingerprint, card, code, or multiple combination method to access |
