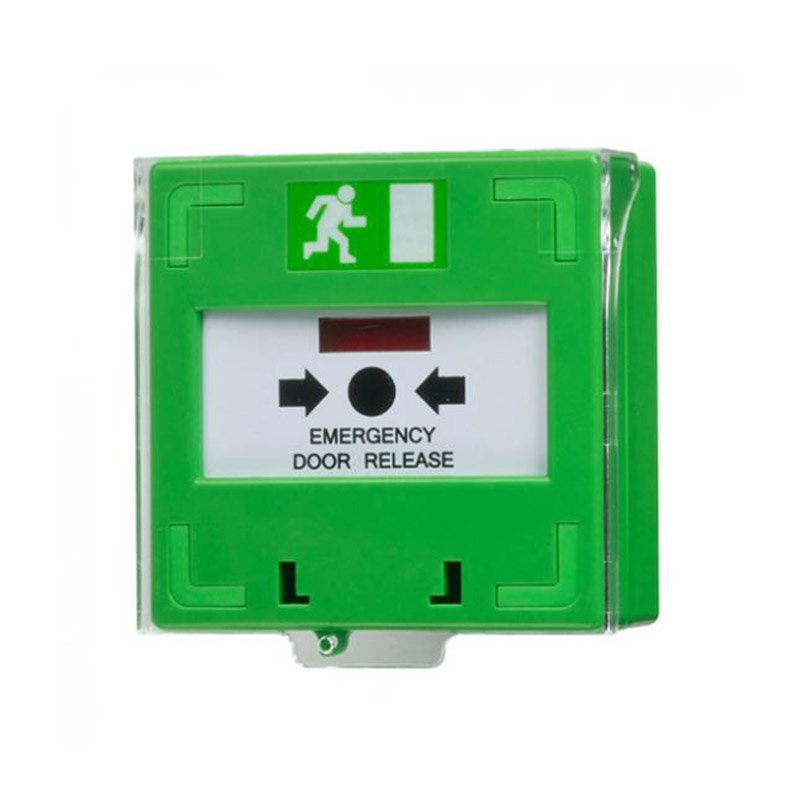

EB-20C Resetable Switch Call Point (Green)
>SPDT / NO/NC/COM
>Surface: Surface Mount
>Material: ABS, PC (transparent part)
Description
Model No.: EB-20C(Green)
| Product Parameter | Parameter Description |
| S4A Model | EB-20C |
| Product Name | The resettable Switch Call Point includes a Plastic cover |
| Dimensions | 90Lx93Wx45H(mm) |
| Material | ABS, PC (transparent part) |
| Surface | Surface Mount |
| Standard Structure | Fireproof Material, Easy to install |
| Operation current | DC 12V/18mA(Standby)/75mA(Operation) (±5%) DC 24V/11mA(Standby)/41mA(Operation) (±5%) |
| Output | N.O.N.C.&COM. Output(Maximum load of 125V/3A) |
| Power Supply | X |
| Buzzer | X |
| Indicator | X |
| Color | Red, White,Green, Orange,Yellow,Black, Blue |
| Unit Weight | 0.2KG |
| Standard Package | 100PCS/carton |
| Carton Weight | 20KG |
| Carton Size | 50*45*24(cm) |
