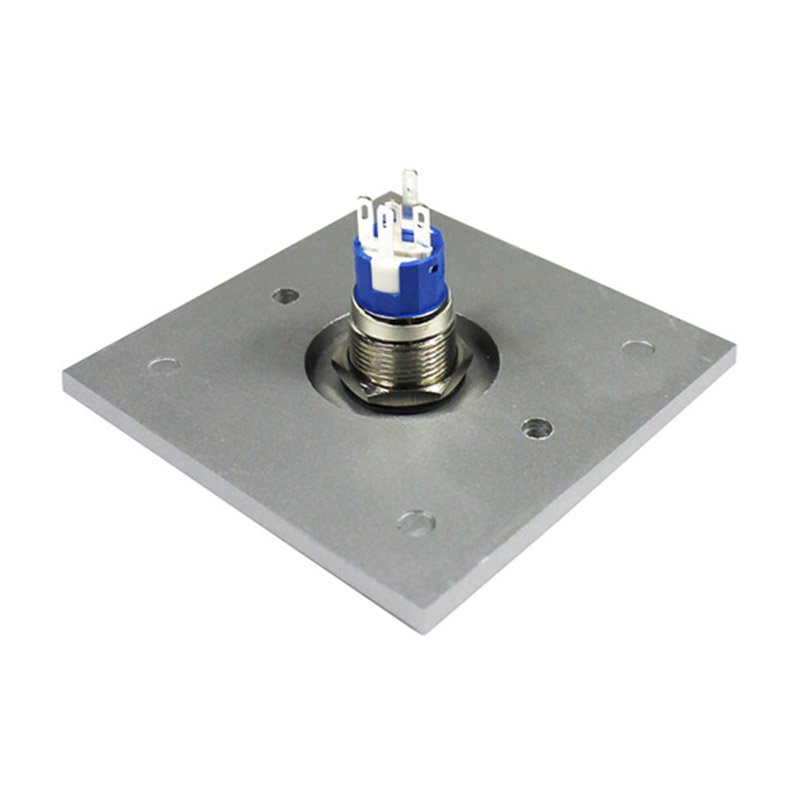

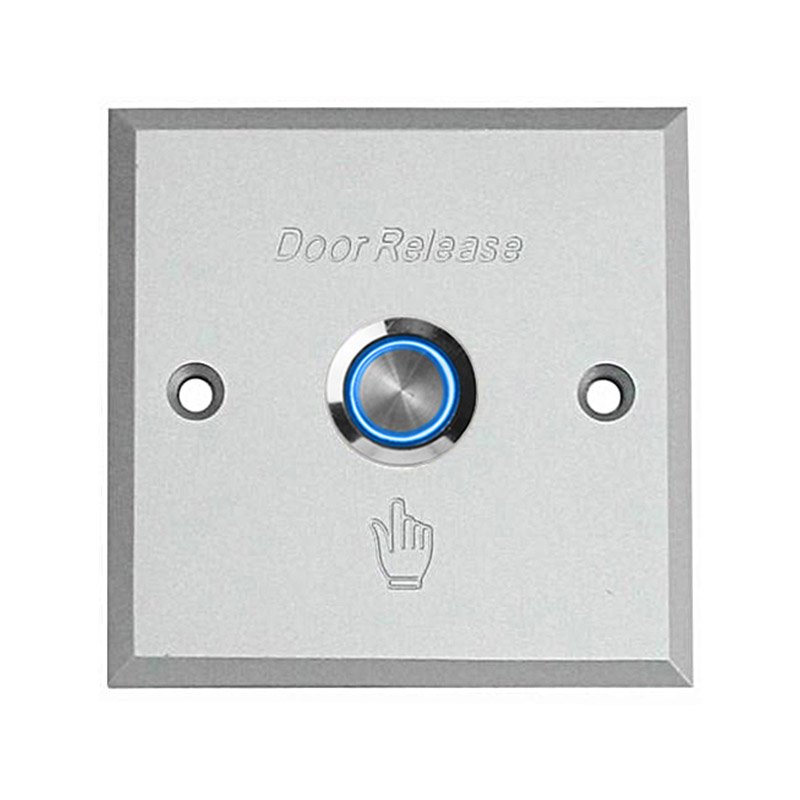

Aluminum Push Button Access Switch Reset switch recessed with LED normally open normally closed
Dimension: 86x86x33mm
Description
Model No: EB-15A (LED)
| Dimensions | 86Lx86Wx33H |
| Standard Structure | Aluminum Panel, Steel Button |
| Current Rating | 3A,36VDC Max |
| Output Contact | +12V GND NO NC COM |
| Mechanical Life | 1000000 tested |
| Suitable for Door | Hollow Door |
| Operating temp | -10℃ ~ 55°C (14°F-131°F) |
| Operating Humidity | 0-95% (non- condensing) |
| Panel Material | Aluminum panel, Sandblast Finished |
| Weight | 0.25kg |
| Standard Packing | 70pcs |
